FEATURES

• The cylinder has nine locking pins points with reversible dimple key.
• “Metalguard” are registered trademark.
• The key design and key profile is protected.
• Complies with the class 5 by EN 1303.
• 939 744 locking combinations.
• Anti-pick protection.
• Anti-drill protection.
• Anti-bump protection.
• Anti-snap protection (cut in the housing and the rotor in a selected section, near to the outside of the housing), ensuring that the cylinder will continue to work even after improper breakage.
• The cylinder housing and plug are made of brass and satin (E) plated.
• Have 9 main locking pins.
• Two-row arrangement of the main locking pins.
• Additional pins on the top row to increase the security of the locking.
• Pins anti-drilling is made of hardened steel and are before and after the weakened section for breakage.
• The CAM is made of sintered steel according BDS 6977-84 or DIN 18252.

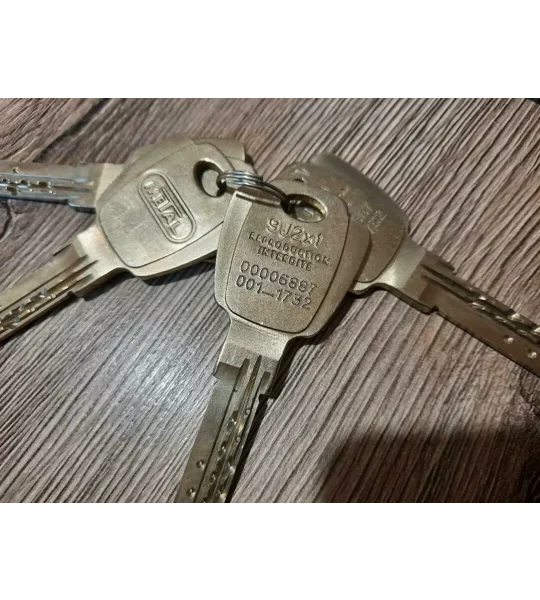

• Four keys made of cupronickel.
• Fixing steel screw M5x55.

BY CUSTOMER ORDER

• Extra cylinder can be manufactured by sample key.
• A cylinder can be manufactured with unlimited number of keys.
• The cylinder can be manufactured with length different from those indicated in the table and with a quantity of keys, which is the customer wants.
