FEATURES

• The cylinder has five locking pins with reversible dimple key with wave key bitting.
• “Metalguard” are registered trademark.
• Patented construction.
• Complies with the class 5 by EN 1303.
• 1 468 800 locking combinations.
• Anti-pick protection.
• Anti-drill protection.
• Anti-bump protection.
• Anti-snap protection (cut in the housing and the plug in a selected section, near to the outside of the housing), ensuring that the cylinder will continue to work even after improper breakage.
• Additional wavy channel of the key in different variants and special pins in contact with it to increase the security of the lock.
• The cylinder housing and plug are made of brass and satin (E) plated.
• Five brass locking pins.
• Pins anti-drilling is made of hardened steel and are before and after the weakened section for breakage.
• Pins anti-drilling is made of hardened steel and are before and after the weakened section for breakage.
• The CAM is made of sintered steel according BDS 6977-84 or DIN 18252.

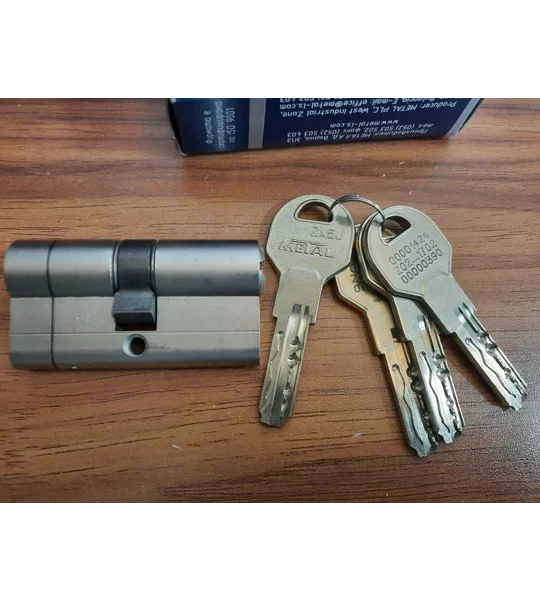

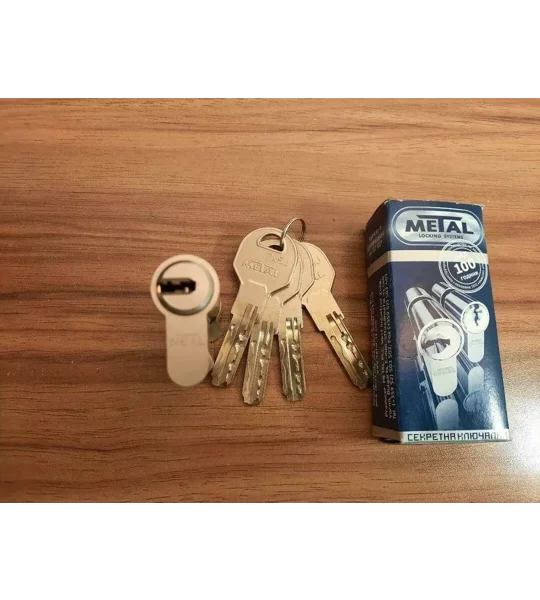

• Four keys made of cupronickel.
• Fixing steel screw M5x55.

BY CUSTOMER ORDER

• Extra cylinder can be manufactured by sample key.
• A cylinder can be manufactured with unlimited number of keys.
• The cylinder can be manufactured with length different from those indicated in the  table and with a quantity of keys, which is the customer wants.
