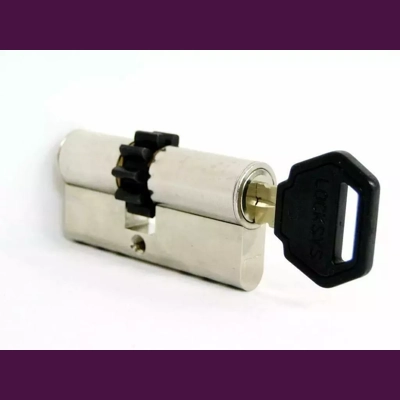

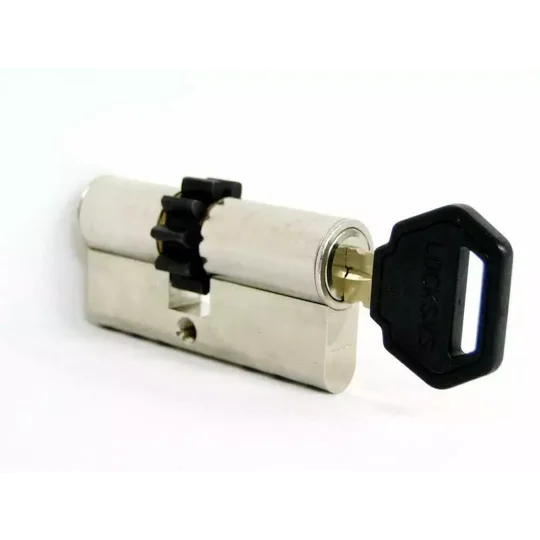

CODKEY L29 /Cylinder Lock with Cogwheel/with 5 Keys

Product Overview

The Codkey L29 Bilateral Cylinder Lock is engineered for high-security applications, specifically designed for mortise locks featuring quadruple locking mechanisms. Built by Codkey Technologies, this advanced Euro-profile cylinder combines precision manufacturing with robust defensive features, offering exceptional physical protection and 15 million possible key combinations.

Key Features & Specifications

• High-Security Codification: Features a computer-set code offering up to 15 million unique combinations, ensuring a high level of secrecy and pick resistance.

• Cogwheel Mechanism: Available with Z10 or Z13 cogwheel options, engineered for smooth operation in multi-point/quadruple locking systems.

• Advanced Defensive Protections:

  • Anti-Bumping Protection: Designed to resist forceful lock-bumping techniques.

  • Drill Resistance: Hardened defense pins protect against core drilling attacks.

• Certified Quality: Fully compliant with EN 1303:2005 standards, backed by testing and certification from an international independent laboratory.

• Master System Versatility: Fully adaptable for complex access control needs, supporting master keying, coupling, and complete component interchangeability.

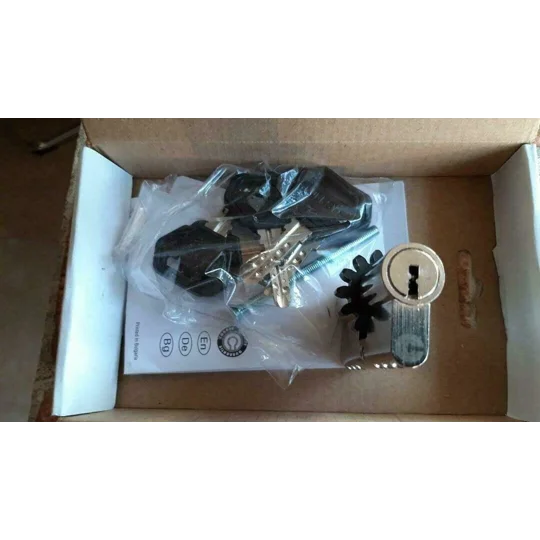

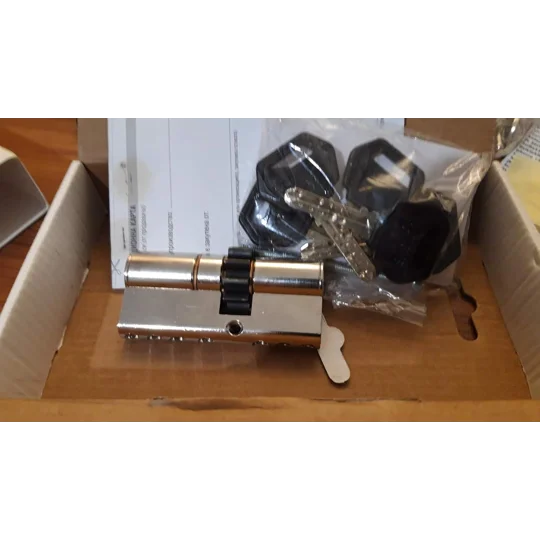

What’s Included

• 1 x Codkey L29 Euro Profile Cylinder (with selected size and cogwheel configuration)

• 5 x High-security matching keys

Specifications Summary

• Brand: Codkey Technologies

• Product Code: 5H-CSVT-K02A

• Standard: EN 1303:2005

• Application: Mortise locks with quadruple locking mechanisms / Multi-point doors

• Available Sizes: Multiple size configurations available (e.g., 30/35, 35/35, 40/40, etc.)

• Cogwheel Options: Z10 / Z13

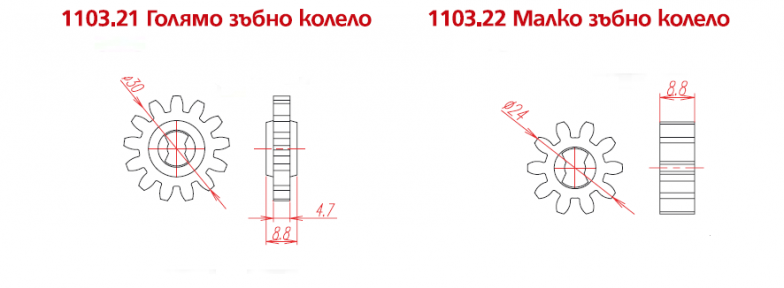

• • 1103.21 — Large cogwheel: Z13, 13 teeth, Ø30 mm, 8.8 mm overall thickness, with the indicated 4.7 mm section.
  • 1103.22 — Small cogwheel: Z10, 10 teeth, Ø24 mm, 8.8 mm overall thickness.

  So for ordering/specifying cylinder-lock cogwheels:

  Z10 = Ø24 mm / 10 teeth
  Z13 = Ø30 mm / 13 teeth
