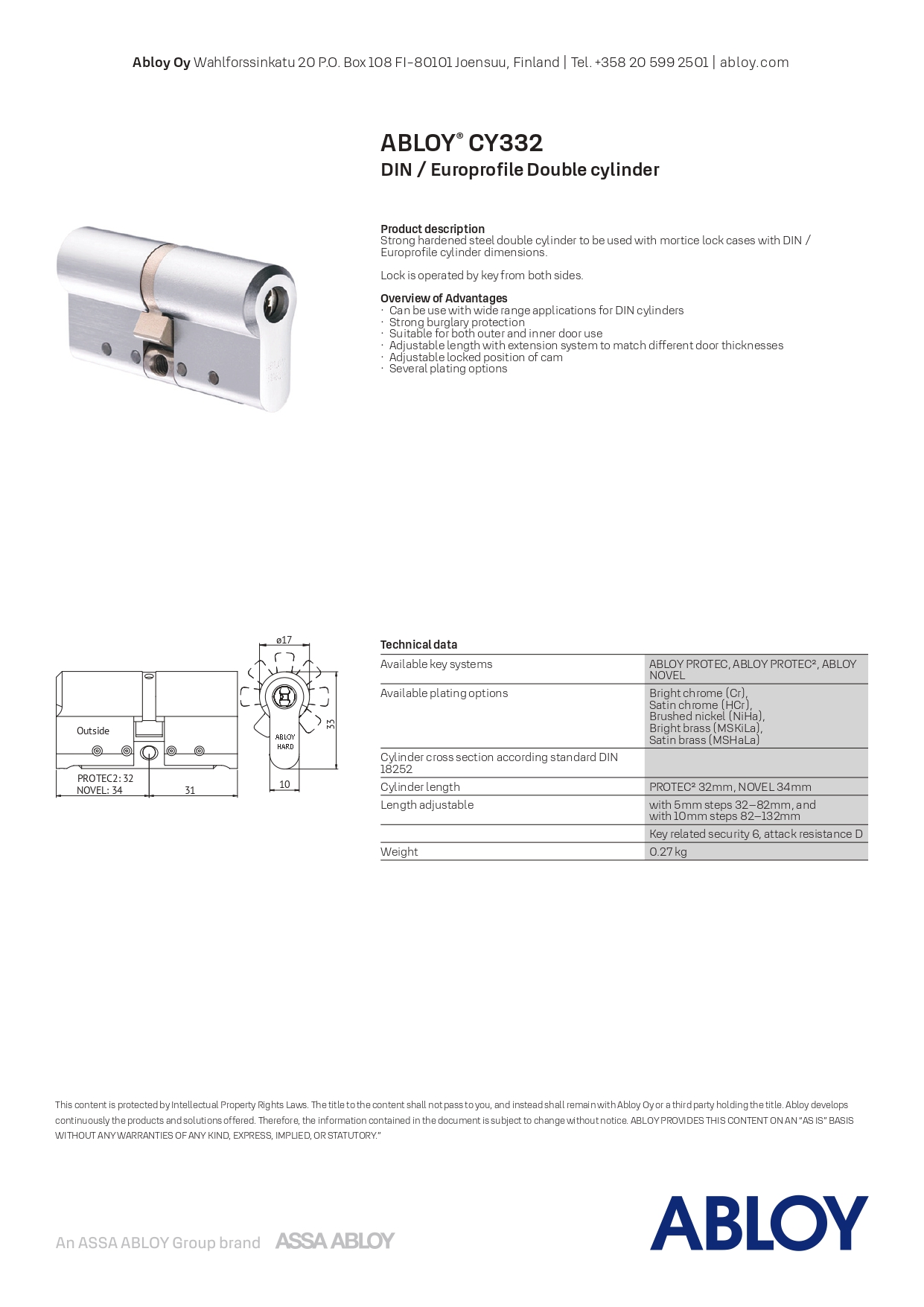

ABLOY CY332T PROTEC 2 High Security Cylinder Lock

• Abloy CY332 T Protec2 .Double cylinder with 3 keys and keycode card.
• Product description
  Strong hardened steel double cylinder to be used with mortice lock cases with DIN /
  Europrofi le cylinder dimensions.
  Lock is operated by key from both sides.
  Overview of Advantages
  • Can be use with wide range applications for DIN cylinders
  • Strong burglary protection
  • Suitable for both outer and inner door use
  • Adjustable length with extension system to match different door thicknesses
  • Adjustable locked position of cam
  •

Technical data
Available key systems ABLOY PROTEC, ABLOY PROTEC², ABLOY
NOVEL
Available plating options Bright chrome (Cr),
Satin chrome (HCr),
Brushed nickel (NiHa),
Bright brass (MSKiLa),
Satin brass (MSHaLa)
Cylinder cross section according standard DIN
18252
Cylinder length PROTEC² 32mm, NOVEL 34mm
Length adjustable with 5mm steps 32–82mm, and
with 10mm steps 82–132mm
Key related security 6, attack resistance D
Weight 0.27 kg
